Orders Webhook Setup Guide

Get real-time order updates delivered directly to your system without the need for constant API polling.

The Orders Webhook automatically pushes order changes from eHub to your designated endpoint, ensuring your systems stay synchronized with minimal latency.

What is the Orders Webhook?

The Orders Webhook is an event-driven notification system that proactively sends order updates to your application whenever changes occur in eHub. Instead of repeatedly polling our API to check for updates, eHub pushes the data to you automatically.

Key Benefits

Eliminate Polling Overhead: Receive updates only when changes occur, reducing unnecessary API calls by up to 98%
Near Real-Time Synchronization: Updates are pushed every 5 minutes, ensuring your systems stay current
Intelligent Batching: Orders are delivered in batches of up to 100, optimizing network efficiency
Store-Specific Filtering: Subscribe to updates for specific stores using order_store_id filtering
Automatic Error Recovery: Built-in retry logic with progress tracking ensures no updates are missed

How It Works

Subscribe: Create a webhook subscription via the eHub API, specifying your callback URL and authentication details
Automatic Monitoring: eHub monitors order changes across your selected stores
Batch Processing: Every 5 minutes, eHub identifies orders updated since the last successful push
Delivery: Orders are sent to your endpoint in chronological order (by updated_at), in batches of up to 100
Progress Tracking: On successful delivery, eHub records the timestamp and continues with the next batch

If a delivery fails, eHub saves the progress point and retries in the next scheduled cycle. After 5 consecutive failures, the subscription is automatically disabled to prevent resource waste.

Prerequisites

Before setting up the Orders Webhook:

API Access: You need valid eHub API credentials
Webhook Endpoint: A publicly accessible HTTPS URL that can receive POST requests
Authentication Support: Your endpoint should support HMAC or HTTP Basic authentication
Store IDs: Know the order_store_id values for the stores you want to monitor

Creating a Webhook Subscription

Step 1: Prepare Your Endpoint

Your webhook endpoint should:

Accept POST requests with JSON payloads
Respond with HTTP 200-299 status codes for successful receipt
Process payloads containing up to 100 order records
Support HMAC signature verification or HTTP Basic authentication

Step 2: Create the Subscription via API

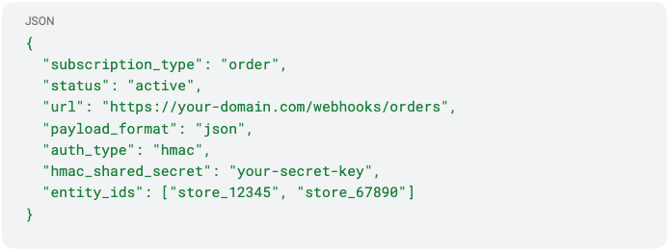

Use the POST /api/v2/subscriptions endpoint to create your webhook subscription:

json

Key Parameters

subscription_type: Set to "order" for order webhooks
url: Your HTTPS endpoint that will receive order updates
entity_ids: Array of order_store_id values to filter which stores' orders are included
auth_type: Choose "hmac" for signature-based auth or "basic" for HTTP Basic auth
hmac_shared_secret: Secret key for HMAC signature verification (if using HMAC)
http_username / http_password: Credentials for HTTP Basic auth (if using basic)

Step 3: Verify the Subscription

After creating the subscription, eHub returns a subscription object with an id. Save this ID—you'll need it to update or manage your subscription later.

Managing Your Webhook Subscription

Updating a Subscription

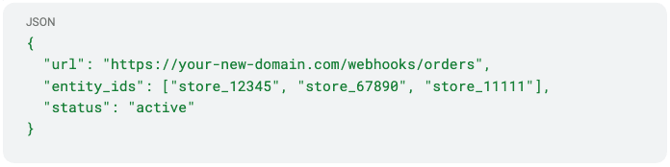

To modify your webhook URL, authentication credentials, or store filters, use the PUT /api/v2/subscriptions/{id} endpoint:

json

Note: You can update any subscription attribute without deleting and recreating it.

Replaying Missed Events

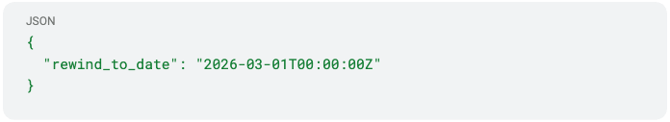

If you need to replay events from a specific date (e.g., after fixing an endpoint issue), use the rewind_to_date parameter:

json

eHub will replay all events from that timestamp forward in chronological order.

Pausing or Disabling

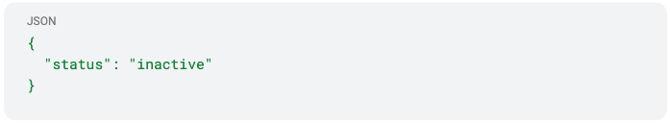

To temporarily stop receiving webhooks, set the subscription status to "inactive":

json

Reactivate by setting it back to "active".

Webhook Payload Format

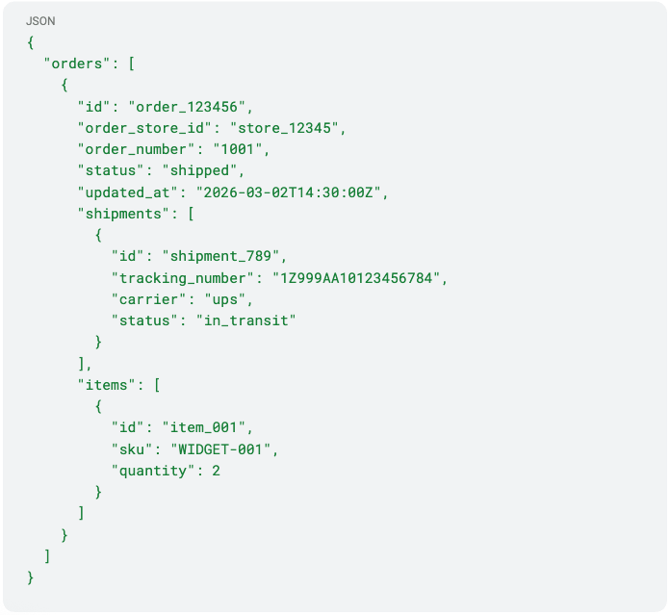

Each webhook POST request contains an array of order objects. Here's an example payload structure:

json

The payload uses the same JSON structure as the GET /api/v2/orders response. For complete field definitions, see the Orders API documentation.

Authentication & Security

HMAC Signature Verification (Recommended)

When using HMAC authentication, eHub includes an X-eHub-Signature header with each request. Verify the signature to ensure the request is from eHub:

Concatenate the raw request body (JSON string)
Generate an HMAC SHA-256 signature using your shared secret
Compare it to the value in the X-eHub-Signature header

HTTP Basic Authentication

If using HTTP Basic auth, eHub includes the credentials you specified in the Authorization header of each request.

Error Handling & Monitoring

Response Codes

Your endpoint should return:

200-299: Successful receipt—eHub records progress and continues
400-499: Client error—eHub records the error and retries in the next cycle
500-599: Server error—eHub records the error and retries in the next cycle

Automatic Disabling

After 5 consecutive failed deliveries, eHub automatically sets the subscription status to "inactive" to prevent wasted resources. You'll need to:

Fix the issue with your endpoint
Reactivate the subscription by setting status to "active"
Optionally use rewind_to_date to replay missed events

Monitoring Your Subscription

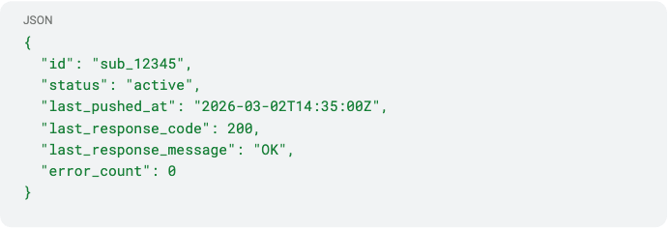

Use GET /api/v2/subscriptions/{id} to check your subscription status and view diagnostics:

json

Best Practices

Handle Duplicates

While rare, your endpoint may receive the same order multiple times (e.g., during retry scenarios). Use the order id or updated_at timestamp to deduplicate.

Process Asynchronously

To respond quickly (within 30 seconds), accept the payload and return 200 immediately, then process the orders asynchronously in a background queue.

Monitor Your Endpoint

Set up alerting on your endpoint to detect:

Unexpected traffic patterns
Authentication failures
Processing errors

Start with One Store

When first testing, subscribe to a single store's orders to validate your integration before scaling to multiple stores.

Use Rate Limit Headroom

Although webhooks significantly reduce your API call volume, remember that you can still use the API for on-demand queries without worrying about hitting rate limits.

Troubleshooting

I'm not receiving any webhooks

Verify your subscription status is "active"
Check that your endpoint is publicly accessible via HTTPS
Ensure your firewall allows inbound traffic from eHub's IP ranges
Verify your authentication configuration is correct

My subscription keeps getting disabled

Check your endpoint logs for errors in the 400-599 range
Ensure your endpoint responds within 30 seconds
Verify you're returning proper HTTP status codes (200-299 for success)

I'm missing some orders

Use GET /api/v2/subscriptions/{id} to check last_pushed_at
Consider using rewind_to_date to replay events from a specific point
Verify your entity_ids include all the stores you want to monitor

Need Help?

Our documentation is designed to make integration seamless. If you have any questions, contact support@ehub.com—we're happy to assist.

For detailed API endpoint specifications, visit the Webhook Subscriptions API documentation.
